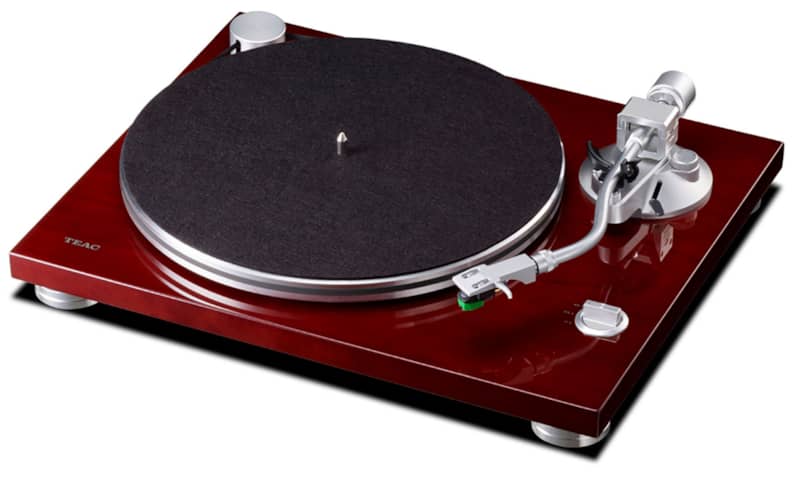

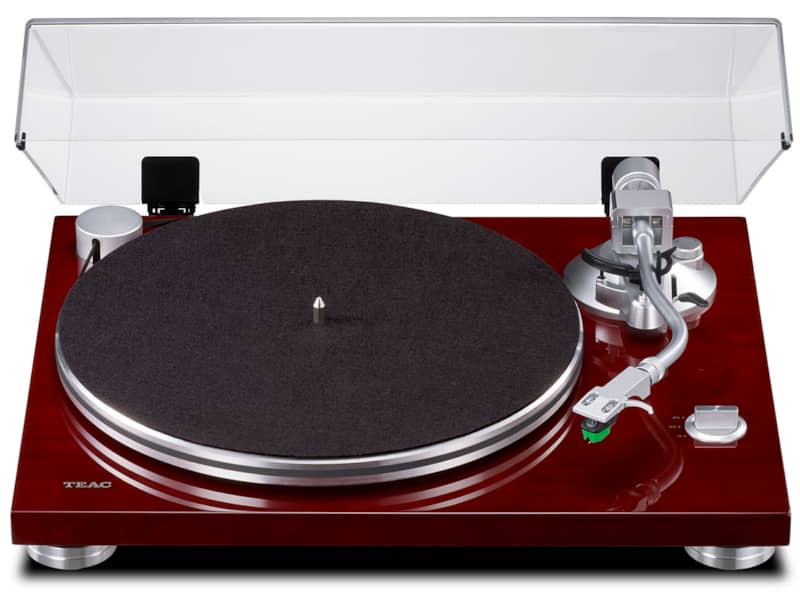

Teac TN-3B Cherry 2-Speed Analog Turntable

Teac TN3BSECH Cherry 2-Speed Analog Turntable

The TN-3B is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier and USB digital output.

It employs a new tonearm with knife-edge, pivot-point bearings, collaborated with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution. The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation. The TN-3B also employs a VM-type cartridge the AT-VM95E manufactured by audio-technica and a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality. In addition, a built-in Analog-to-Digital converter and USB port allow users to digitise their vinyl libraries on their PC/Mac.

The TN-3B delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.

Key Features

• Belt-drive mechanism
• 2-speed turntable supporting 33-? and 45 rpm
• Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC
• Aluminum die-cast platter
• Built-in PHONO EQ amplifier compatible with MM-type cartridges
• Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage
• Anti-skating mechanism
• USB digital audio output for digitising records on a PC/Mac
• PHONO/LINE analog output (switchable)
• Gold-plated oxidation-resistant output connectors
• Pre-installed AT-VM95E cartridge supplied by audio-technica
• Rigid, high-density MDF plinth with multi-layered lacquer finish
• Shock-absorbing insulating feet
• GND terminal
• RoHS compliant

Features

• Knife-edge, pivot-point tone-arm bearings
  In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B’s tone-arm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 – 23g / 0.5 – 0.8 oz.)??
• Precision anti-skating and stylus-pressure adjustment
  The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.
• Pre-installed VM-series cartridge
  A VM-type cartridge the AT-VM95E manufactured by audio-technica with an elliptical-shaped stylus tip comes pre-installed on the head-shell for convenience. After you??ve opened the box, set up the platter and mounted the head-shell on the tonearm, you’ll be ready to enjoy your records.
  • * Replacement styli should be available at the retail store where you purchased the unit, or via the TEAC On-line store. (TEAC On-line store is available in selected countries.)
  • * The VM-series cartridge is a MM (Moving Magnet) type design, and is compatible with all conventional MM-type phono EQ amplifiers.
• Built-in MM-type phono EQ amplifier
  The TN-3B incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.
• External belt-drive with aluminum die-cast platter
  A belt-drive arrangement is employed in order to minimise any motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass and surface area).
• Luxurious, multi-layer lacquer paint finish
  All internal components are mounted on a robust and high-density MDF plinth for rigidity and vibration-deadening. Thanks to its sleek and stylish design, the TN-3B looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.
• 33-? and 45 rpm 2-speed turntable
  The TN-3B supports both 33-? and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.
• USB digital output for digital archiving

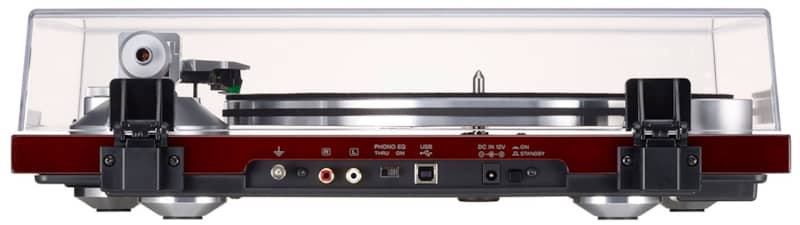

  A USB port on the back panel delivers CD-quality digital audio to your PC/Mac, allowing you to record/archive your analog library in a high quality, digital audio format. Once you have archived your vinyl to digital, it??s a simple matter to listen to them while out and about, via a smartphone/portable audio player, or in your car (by burning them onto a CD-R or transferring them to a memory card/stick).
  And to ensure pristine signal transfer, gold-plated PHONO/LINE output terminals are employed to prevent analog audio signals from losing quality as a result of oxidation.
• Insulating feet with excellent shock absorption
  The insulating feet comprise a machined aluminium shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B is very resistant to acoustic feedback.
• Honeycomb patterned bottom panel
  In order to achieve sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimises unwanted vibrations.
