Description

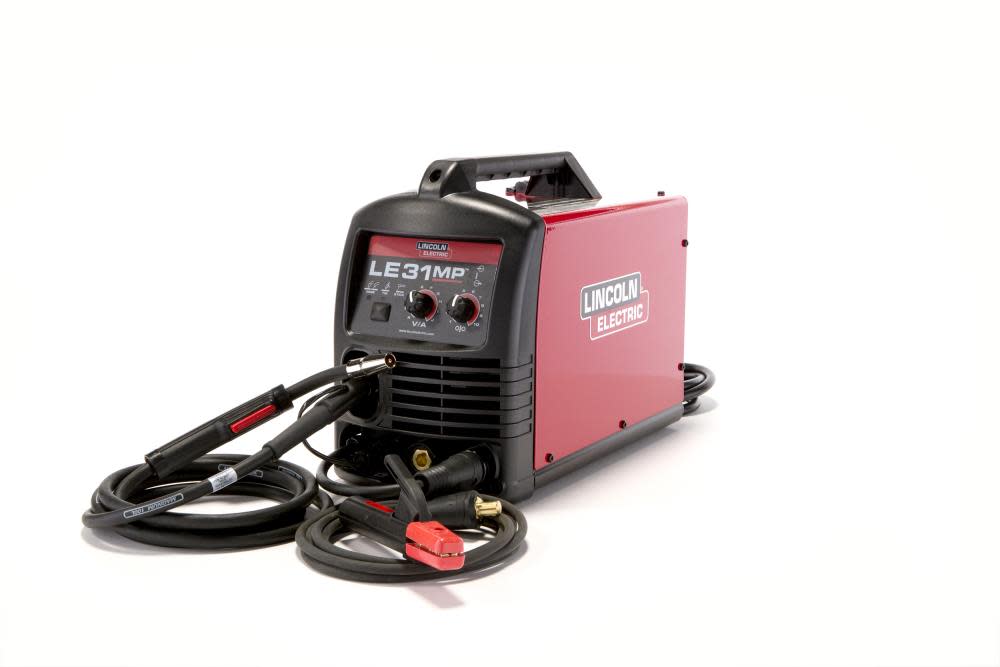

Multi Process Welder
Multiprocess welding machine. Fully adjustable drive system reduces the chance of wire tangling and crushing. Brass-to-brass gun connection enhances conductivity.
Features
Wide 30-140 amp welding output for MIG, FCAW and spool gun allows for welding on 24 to 5/16 material
Wide 10-120 amp range for TIG welding permits welding on thin and thick steel and stainless
Forgiving Arc makes dialing in your application easy
Smooth Arc starts with minimal spatter
Specifications
Acme Tools Brand Name
LINCOLN ELECTRIC
Acme Tools Part Number
K3461-1
Amps Output Range
30-140
Assembled Weight (lbs)
50.0
California Proposition 65 Warning Required
Yes
Country of Origin
Mexico
Current Rating (A)
115
Duty Cycle
95 A / 18.75 V @ 60%
ETL Listed
Yes
Height (in)
13.6
Housing Material
Metal
Input Voltage
120
Internal Supplier Part #
K3461-1
Internet Product Code (IPC)
89FDD5C5F12
Length (in)
8.9
Manufacturer Warranty
3 year
Package Weight
50
Package Weight (lbs)
50
Processes
MIG/Flux-Cored
UL Listed
Yes
Voltage
120
Voltage Rating
120
Weight (lbs)
34.5
Welder / Cutter Type
Mig/Stick/Tig
Width (in)
18.1
Work Cable Length (ft)
10
