Description

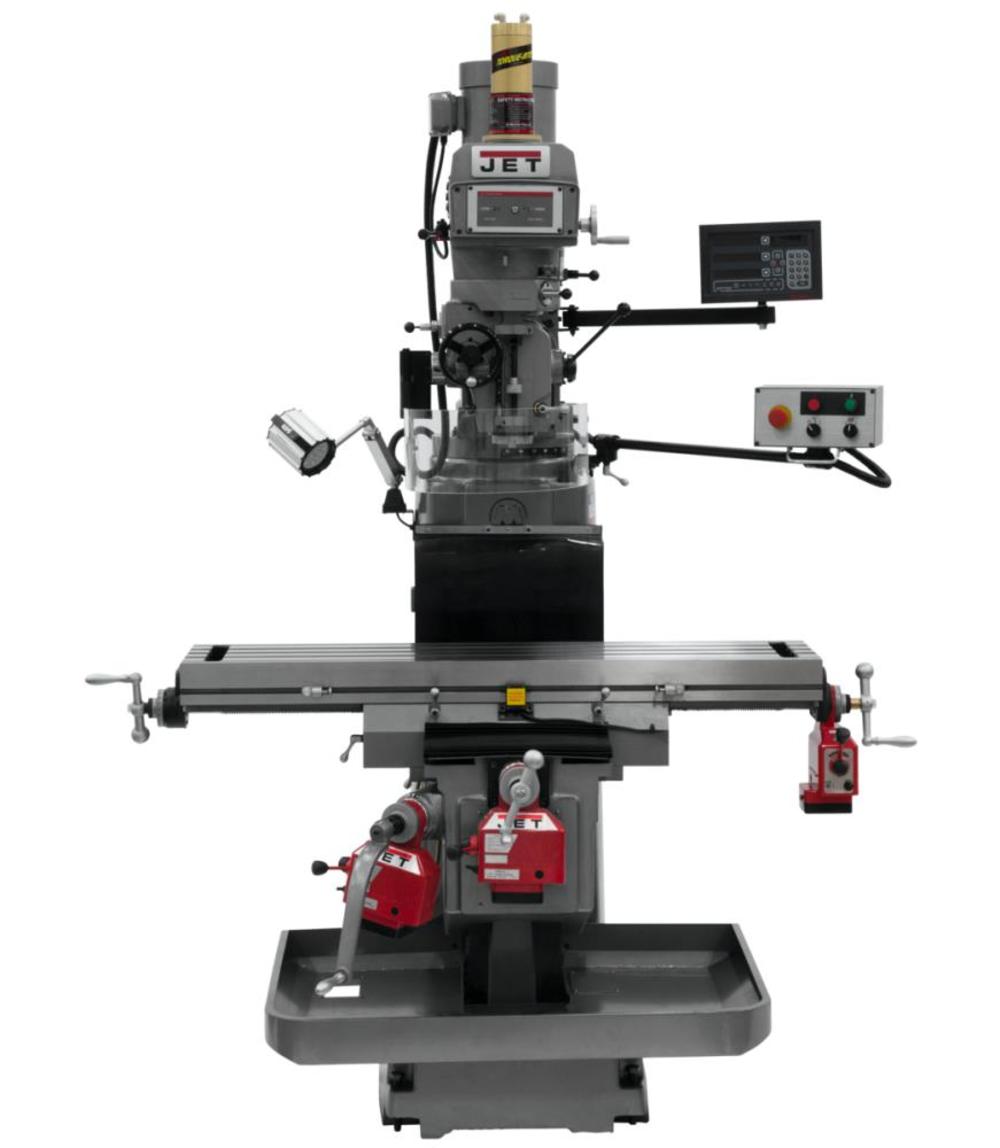

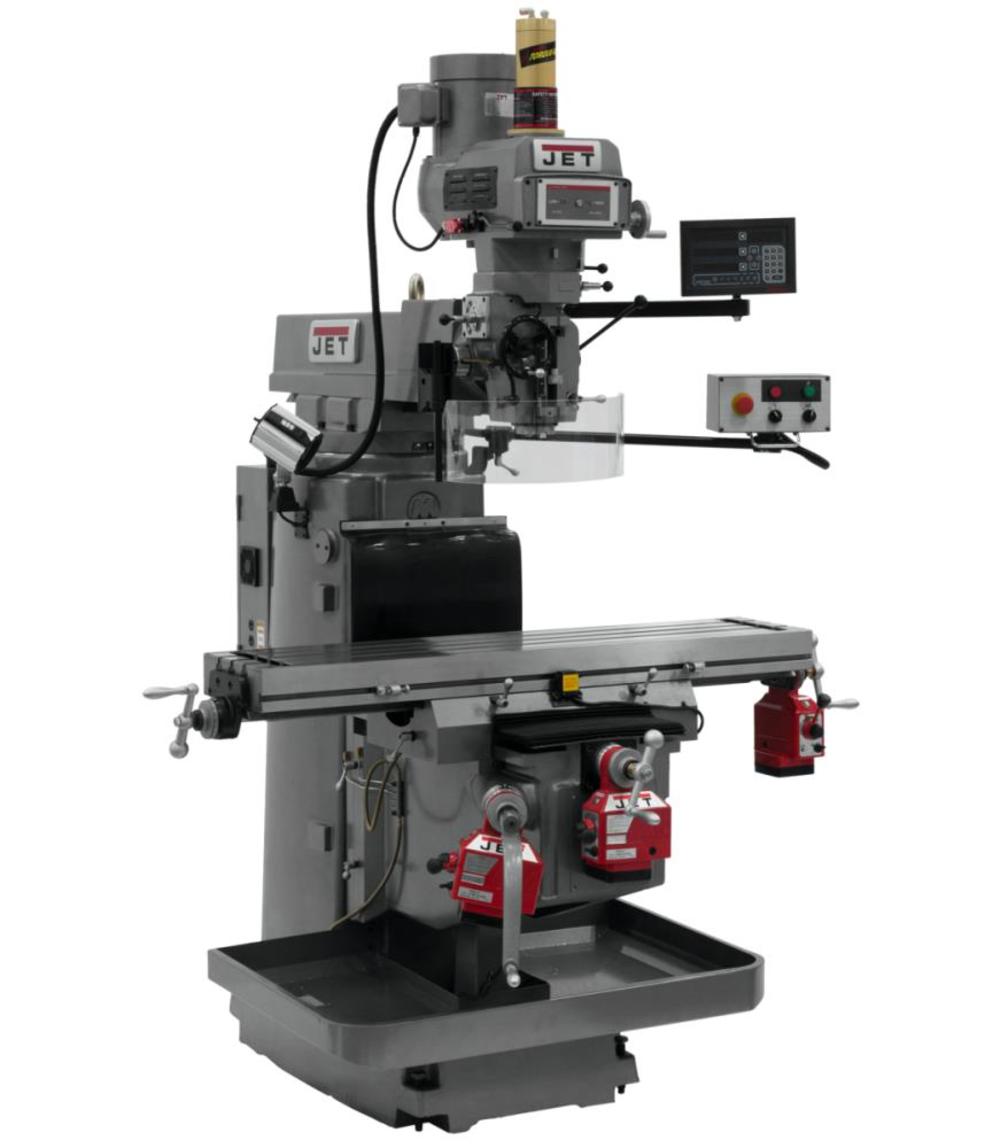

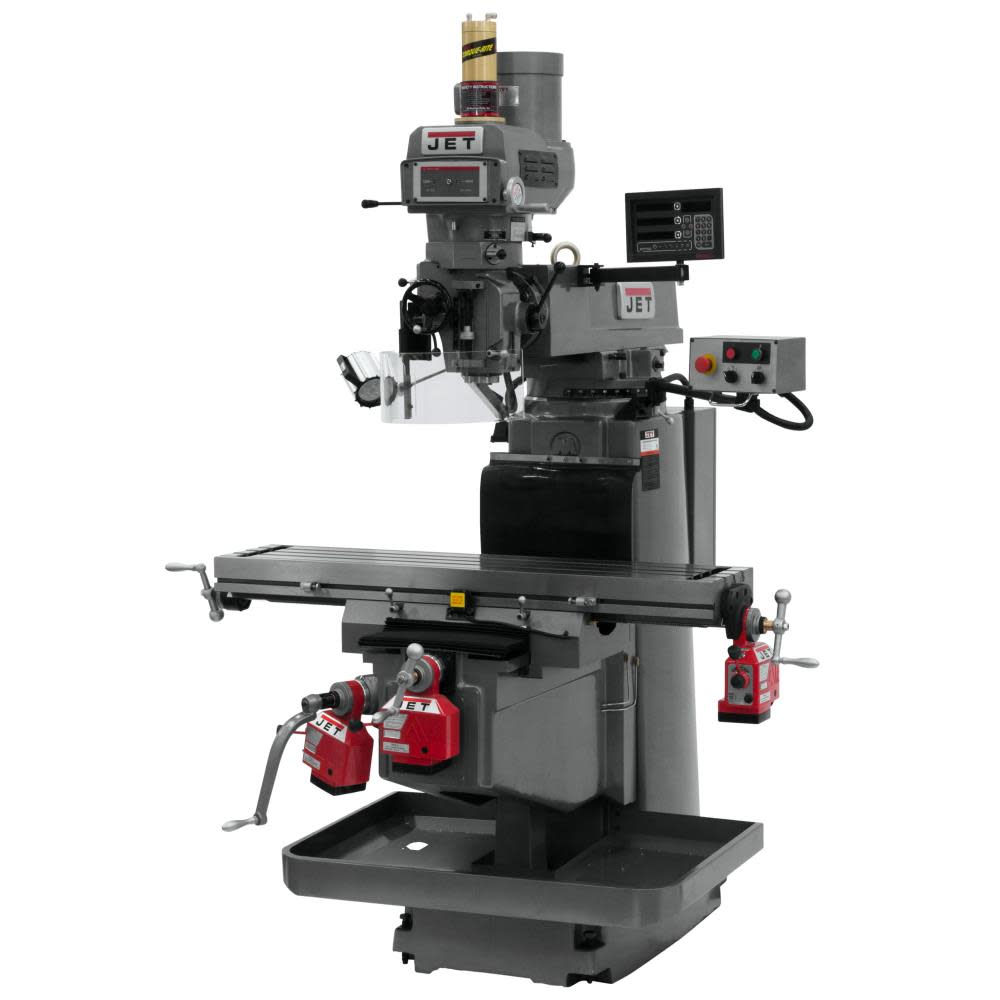

JTM-1254VS Vertical Milling Machine
The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12?? x 54?? Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you’ve come to expect backed by the industry-leading JET Two Year Warranty.
Features
Certified Meehanite? Castings
Chrome lead screws on X and Y axis
High precision Class 7 spindle bearings
Quick Spindle Feed Nut
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
698077
Assembled Weight (lbs)
3696.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
Taiwan
Head Tilt (Left Or Right)
90
Height (in)
104.25
Internal Supplier Part #
698077
Internet Product Code (IPC)
AF7AB961C7D
Length (in)
92.125
Manufacturer Warranty
2 Year
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Depth
92.125
Package Height
104.25
Package Weight
3696
Package Weight (lbs)
3260
Ram Travel
25.0
Stand Included
Yes
T-Slot Width (in)
0.625
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230/460 Volts
Weight (lbs)
3696.0
Width (in)
79.875
X Axis, Longitudinal (in)
0.0
Y Axis, Cross (in)
0.0
