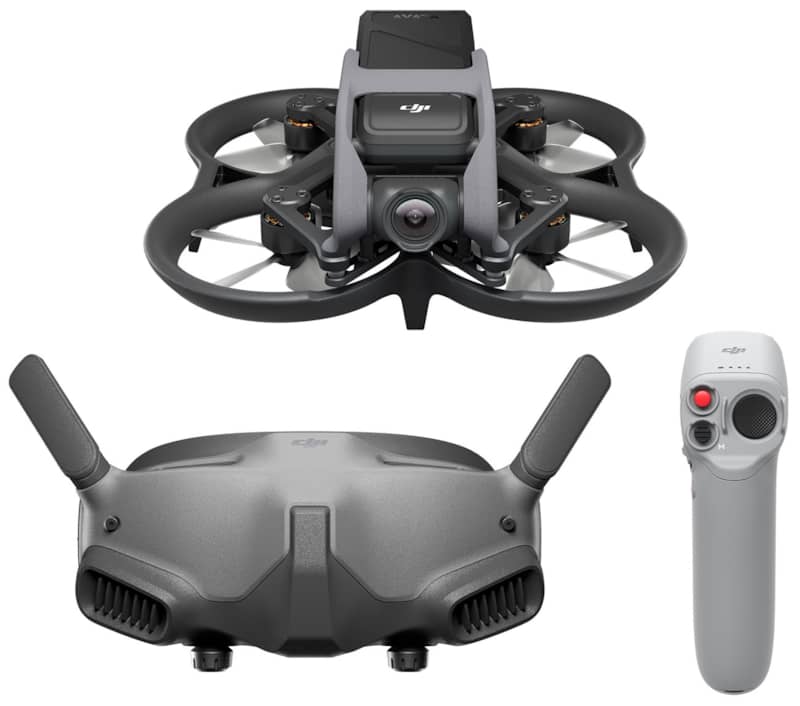

DJI Avata Pro-View Combo

DJI CPFP0000011001 Avata Pro-View Combo

The Sky is Your Playground

When you combine Avata with the goggles and motion controller, flight becomes accessible to all. [1] Experience the thrill of total immersion with unrivaled safety and control. Embrace your spontaneity and capture the world around you. Some of us were Born to Fly.

Features

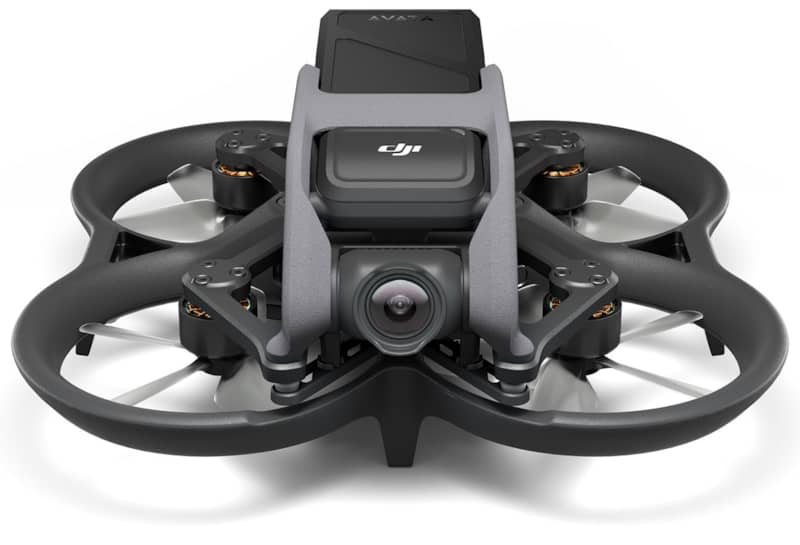

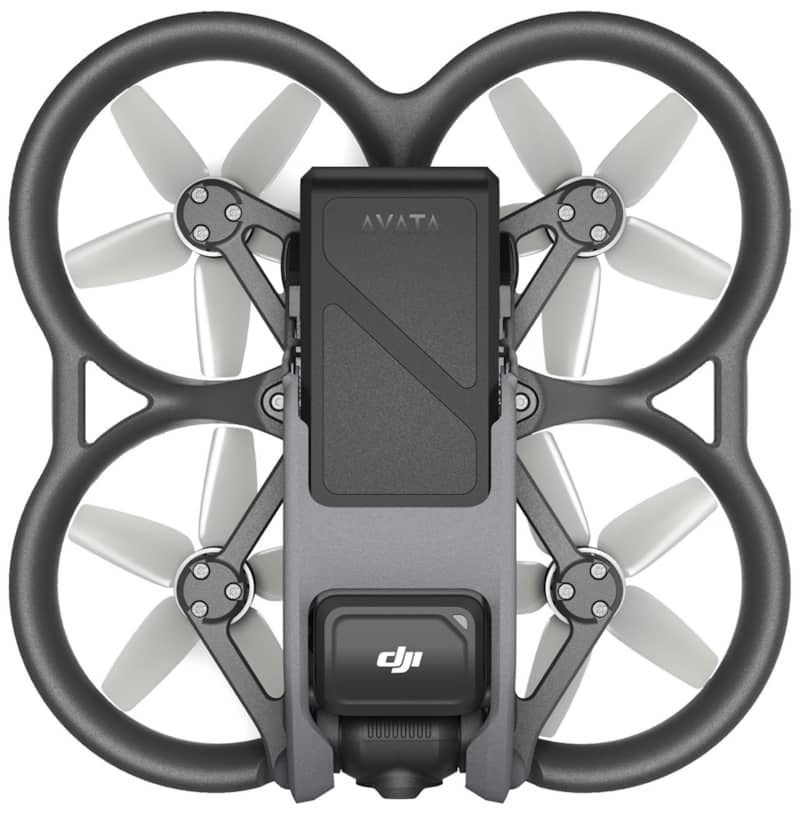

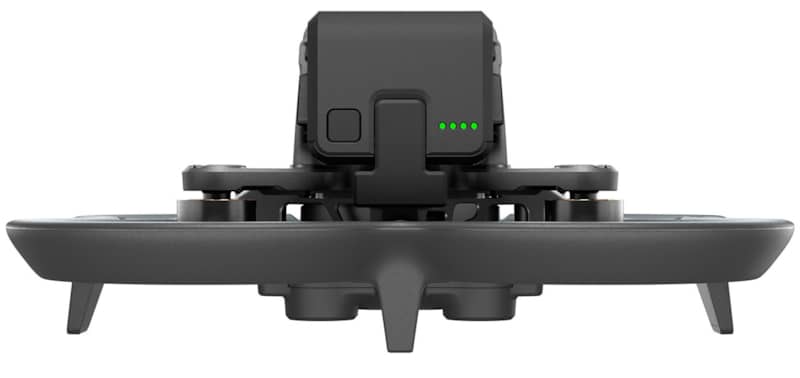

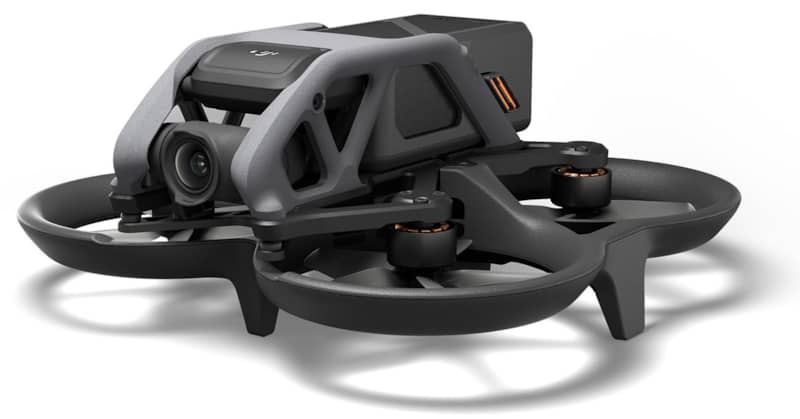

• DJI Avata
  Where Agility Meets Toughness
  Compact and lightweight, DJI Avata is nimble in tight spaces. Every aspect of its design was made for you to be bold. The built-in propeller guard means that if Avata comes in contact with an object, it can bounce back, stay in the air, and can keep on flying.
• DJI Goggles 2
  Get in the Pilot’s Seat
  Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky. DJI Avata also supports DJI FPV Goggles V2. [1]
• DJI Motion Controller
  Get a Feel for Flying
  With the DJI Motion Controller, intuitive flight is in your hands. [1] Squeeze the trigger and bolt forward or turn a corner with the swivel of your wrist. The controls are easy to use and provide a totally unique way to fly.

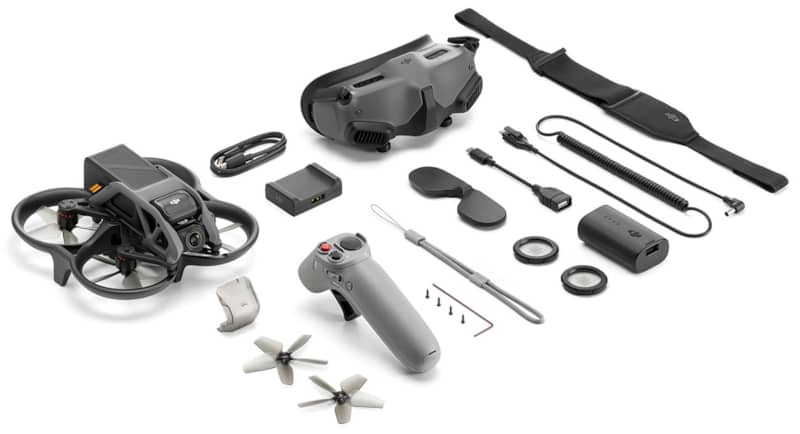

• The Perfect Package
  DJI Goggles 2 are compact, and ultra-portable. The foldable antenna and lightweight design make them easy to store, comfortable to wear, and suitable for long-term use. [2] With a two-hour battery life and super-fast charging speeds, you can always be ready for immersive flight.
• 1080p Micro-OLED Screens
  Feel every flight with DJI Avata and Goggles 2. The two HD Micro-OLED screens offer stunning clarity and a refresh rate of up to 100 Hz. [3] The goggles present a smooth full-screen live feed in front of your eyes, creating an immersive world of limitless potential.
• Diopter Adjustment
  DJI Goggles 2 offer diopter adjustment from +2.0 D to -8.0 D for optimized viewing and comfort. [4][5] Lock the adjustment knob to fix the diopter in place and prevent accidental touches during use or storage.

Epic Moves Deserve Epic Footage

• A Breakthrough in FPV Visuals
  Equipped with a 1/1.7-inch CMOS sensor, DJI Avata supports 4K ultra-wide-angle recording with an f/2.8 aperture. Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats.
  • 1/1.7-inch Sensor
  • 4K/60fps Video [6]
  • 155?? Super-Wide FOV
  • D-Cinelike Color Mode
  • RockSteady 2.0 EIS
  • HorizonSteady EIS
• 155?? Super-Wide FOV
  Most camera drones offer, at best, an 84?? FOV. DJI Avata kicks things up a gear with its super-wide 155?? FOV. [7] This expanded perspective is closer to what we see with our own eyes, creating impactful, hyper-immersive visuals.
• Smooth Shooting

  Keep your footage stable as you swoop and dive with RockSteady 2.0 and HorizonSteady. [8] These flagship technologies open a world of cinematic possibilities by reducing camera shake and ensuring smooth ultra-HD video.
  • RockSteady 2.0
    RockSteady actively reduces camera shake in real-time.
  • HorizonSteady
    HorizonSteady locks your footage to a level horizon for cinematic effects.
• Agile in the Editing Room
  Dive into a world of colors by shooting in D-Cinelike mode. Make your footage pop with advanced color grading in post-editing and turn your creation into a masterpiece.

Your Rugged Companion

• Portable and Ready for Adventure
  Avata adopts a new innovative design that is made with convenience in mind. It is more lightweight, compact, and easy to carry.
• Be Bold. Fly Far.
  DJI Avata is built tough, so you can be brave. The durable frame reduces the risk of damage, giving you more peace of mind. The new ducted aerodynamic design optimizes power efficiency allowing for an impressive flight time of up to 18 minutes. [9]
• Soar and Explore
  Rediscover your surroundings with complete freedom and find incredible ways to capture video. DJI Avata’s flexibility in various scenarios opens up a world of creative possibilities.
• Fly Where Others Can’t
  Capture truly unique footage as you weave between branches, under bridges, and through corridors, filming in places previously inaccessible.
• Turtle Mode
  Turtle Mode Should Avata fall on its back, activate Turtle mode with a few simple taps and watch it spring back into action.

Confidence Born From Safety

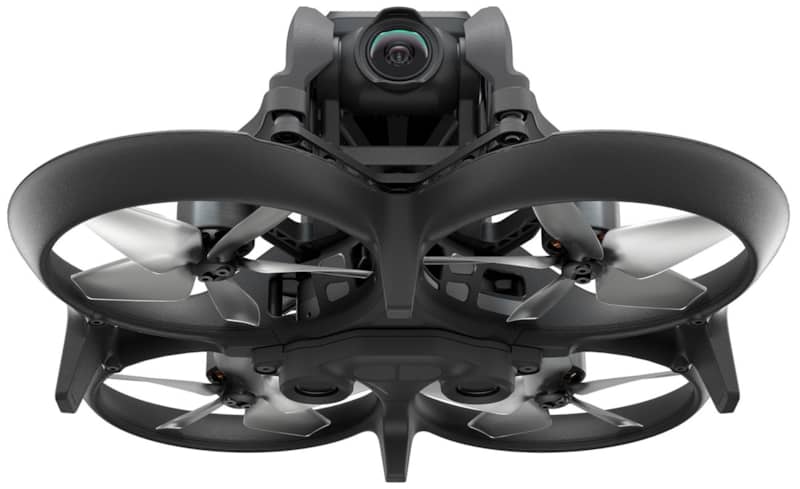

• Downward Obstacle Sensing System
  In addition to the built-in propeller guard, Avata features downward binocular vision and ToF infrared sensing for even greater safety. These sensors detect obstacles below and allow Avata to perform low-altitude or indoor flight. [10]
• Who Said Safety Isn’t Fun?

  Enjoy the experience with less flight anxiety. The motion controller’s Emergency Brake button lets you stop on a dime at the tap of a button. And with support for RTH, you get added protection when the battery is low or signal drops out.
  • Low-Altitude Flight
    Try out Avata’s low-altitude flight and safely glide tantalizingly close to the ground. [11] This, combined with the super-wide FOV, creates an exhilarating, one-of-a-kind perspective.
  • Halt and Hover
    Tap the Emergency Brake button if you encounter a situation that requires an abrupt stop. Avata will hover in place, reducing the risk of potential accidents.

Transmission You Can Depend On
Avata features DJI’s flagship O3+ video transmission and 2T2R omnidirectional antennas for unrivaled stability and responsiveness during flight. Enjoy a crisp and smooth real-time view in your goggles, even in environments with interference.
* When using DJI Goggles 2 in an open outdoor environment without interference.

• 1080p
  Max Video Transmission Quality [12]
• 100 fps
  Max Video Transmission Frame Rate
• 30 ms
  Lowest Video Transmission Latency [12]
• 10 km
  Max Video Transmission Range [13]
• 50 Mbps
  Max Video Transmission Bitrate [14]
• H.265
  Video Transmission Coding

Master Your Moves
DJI Avata is compatible with multiple remote control devices that each unlock different possibilities. The flight simulator is perfect for sharpening your skills or trying our different control modes that will offer enriched visual effects and new opportunities.

• Ultimate Precision
  Fly in Manual mode with DJI FPV Remote Controller 2 to achieve advanced flight movements, stable aerial photography effects, and diversified visual language for filming. [15
• Practice Makes Perfect
  The DJI Virtual Flight app is applicable to both computers and smartphones and contains a variety of simulated scenarios. [16] You can practice indoors or outdoors, polish your flight skills, and become a master pilot step by step.

Specifications

Camera

• Sensor:
  • 1/1.7-inch CMOS
  • Effective Pixels: 48 MP
• Lens:
  • FOV: 155??
  • Equivalent Focal Length: 12.7 mm
  • Focal Length: 2.34 mm
  • Aperture: f/2.8
  • Focus Mode: FF
  • Focus Range: 0.6 m to ??
• ISO Range:
  • 100-6400 (Auto)
  • 100-25600 (Manual)
• Shutter Speed:
  • Video: 1/8000-1/50 s
  • Photo: 1/8000-1/50 s
• Still Photography Mode: Single Shot
• Max Image Size: 4000×3000
• Photo Format: JPEG
• Video Resolution:
  • With DJI Goggles 2:

    • 4K@50/60fps
    • 2.7K@50/60/100fps
    • 1080p@50/60/100fps
  • With DJI FPV Goggles V2:

    • 4K@50/60fps
    • 2.7K@50/60/100/120fps
    • 1080p@50/60/100/120fps
• Video Format: MP4
• Max Video Bitrate: 150 Mbps
• Color Mode:
  • Standard
  • D-Cinelike
• EIS:
  • Supports RockSteady and HorizonSteady
  • Can be disabled
• Distortion Correction: Supports Normal Mode, Wide Mode, and Ultra Wide Mode
• Supported File System:
  • exFAT (recommended)
  • FAT32

Gimbal

• Mechanical Range: Tilt: -95?? to 75??
• Controllable Range: Tilt: -80?? to +65??
• Stabilization: Single-Axis (tilt)
• Max Control Speed: 60??/s
• Angular Vibration Range: ??0.01??
• Electronic Roll Axis: Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.

Aircraft

• Model: QF2W4K
• Takeoff Weight: Approx. 410 g
• Dimensions (LxWxH): 180x180x80 mm
• Diagonal Distance: 120 mm
• Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
• Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
• Max Speed [1]:
  • 8 m/s (Normal Mode)
  • 14 m/s (Sport Mode)
  • 27 m/s (Manual Mode)
• Maximum Takeoff Altitude: 5000 m
• Max Hover Time: Approx. 18 mins [2]
• Max Flight Distance: 11.6 km
• Max Wind Speed Resistance: 10.7 m/s (Level 5)
• Operating Temperature Range: -10?? to 40?? C (14?? to 104?? F)
• Transmission Power (EIRP):
  • FCC: < 33 dBm
  • CE: < 14 dBm
  • SRRC: < 30 dBm
• Antennas: Dual Antennas, 2T2R
• GNSS: GPS + Galileo + BeiDou
• Hovering Accuracy Range:
  • Vertical:
    • ??0.1 m (with Vision Positioning)
    • ??0.5 m (with GNSS Positioning)
  • Horizontal:

    • ??0.3 m (with Vision Positioning)
    • ??1.5 m (with GNSS Positioning)
• Supported SD Cards: microSD (up to 256 GB)
• Recommended microSD Cards:
  • SanDisk Extreme U3 V30 A1 32GB microSDXC
  • SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
  • Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
  • Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
  • Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
• Internal Storage: 20 GB

Sensing System

• Downward (Binocular Vision and ToF) [3]:
  • ToF Effective Measurement Height: 10 m
  • Precise Hovering Range: 0.5-10 m
  • Vision Sensor Hovering Range: 0.5-20 m
• Operating Environment D:
  • Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
  • Adequate lighting (lux > 15, normal indoor lighting conditions)

Intelligent Flight Battery

• Battery Capacity: 2420 mAh
• Voltage: 14.76 V
• Charging Voltage Limit: 17 V
• Type: Li-ion
• Chemical System: LiNiMnCoO2
• Energy: 35.71 [email protected]
• Discharge Rate: Typical: 7C
• Weight: Approx. 162 g
• Charging Temperature Range: 5?? to 40?? C (41?? to 104?? F)

Video Transmission

• Communication Frequency:
  • 2.400-2.4835 GHz (RX only)
  • 5.725-5.850 GHz (RX and TX) [4]
• Communication Bandwidth: Max 40 MHz
• Live View Quality and Latency [5]:
  • With DJI FPV Goggles V2:
    • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
    • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
  • With DJI Goggles 2:

    • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
    • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
• Max Video Transmission Bitrate [6]: 50 Mbps
• Max Video Transmission Range [7]: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Audio Transmission: N/A

DJI Goggles 2

• Model: RCDS18
• Weight:Approx. 290 g (headband included)
• Dimensions (L??W??H):
  • With antennas folded: 167.40??103.90??81.31 mm
  • With antennas unfolded: 196.69??103.90??104.61 mm
• Screen Size (single screen): 0.49-inch
• Resolution (single screen): 1920??1080
• Refresh Rate: Up to 100 Hz
• Interpupillary Distance Range: 56-72 mm
• Diopter Adjustment Range: -8.0 D to +2.0 D
• FOV (single screen): 51??
• Communication Frequency:
  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz [4]
• Transmission Power (EIRP)
  • 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
  • 5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
• Wi-Fi Protocol: Wi-Fi 802.11b/a/g/n/ac
• Wi-Fi Communication Frequency:
  • 2.400-2.4835 GHz
  • 5.150-5.250 GHz (indoor use only) [8]
  • 5.725-5.850 GHz [4]
• Wi-Fi Transmission Power (EIRP):
  • 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
  • 5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
  • 5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
• Bluetooth Protocol: Bluetooth 5.2
• Bluetooth Communication Frequency: 2.400-2.4835 GHz
• Bluetooth Transmission Power (EIRP): < 8 dBm
• Max Video Transmission Bitrate [6]: 50 Mbps
• Video Recording Format: MOV
• Supported Video and Audio Playback Formats: MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
• Wi-Fi Wireless Streaming : Supports DLNA Protocol
• Operating Temperature Range: -10?? to 40?? C (14?? to 104?? F)
• Power Input: DJI Goggles 2 Battery
• Supported SD Cards: microSD (up to 256 GB)

DJI Goggles 2 Battery

• Capacity: 1800 mAh
• Voltage: 7-9 V (1.5 A)
• Type: Li-ion
• Chemical System: LiNiMnCoO2
• Energy: 18 Wh
• Charging Temperature Range: 0?? to 45?? C (32?? to 113?? F)
• Max Charging Power: 12.6 W (5 V/2 A, 9 V/1.4 A)
• Weight: Approx. 122 g
• Dimensions (L??W??H): 73.04??40.96??26 mm
• Operating Time: Approx. 2 hours

DJI FPV Goggles V2

• Model: FGDB28
• Weight: Approx. 420 g (headband and antennas included)
• Supported Video and Audio Playback Formats: MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
• Operating Temperature Range: 0?? to 40?? C (32?? to 104?? F)
• Video Recording Format: MOV (video coding format: H.264)
• FOV:
  • 30?? to 54??, adjustable
  • Image Size: 50% to 100%
• Communication Frequency:
  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz [4]
• Max Video Transmission Bitrate [6]: 50 Mbps
• Dimensions (L??W??H):
  • Without antennas: 184??122??110 mm
  • With antennas: 202??126??110 mm
• Transmission Power (EIRP):
  • 2.400-2.4835 GHz:
    • FCC: ?? 28.5 dBm
    • CE: ?? 20 dBm
    • SRRC: ?? 20 dBm
  • 5.725-5.850 GHz [4]:
  • FCC: ?? 31.5 dBm
  • CE: ?? 14 dBm
  • SRRC: ?? 19 dBm
• Screen Size (single screen): 2-inch
• Power Input: Dedicated DJI Goggles batteries
• Supported SD Cards: microSD (up to 256 GB)
• Communication Bandwidth: Max 40 MHz
• Interpupillary Distance Range: 58-70 mm
• Refresh Rate: 144 Hz
• Screen Resolution: 1440??810

DJI FPV Goggles V2 Battery

• Weight: Approx. 119 g
• Dimensions (L??W??H): 73.04??40.96??26 mm
• Capacity: 1800 mAh
• Voltage: Max 9 V
• Chemical System: LiNiMnCoO2
• Type: Li-Po 2S
• Energy: 18 Wh
• Charging Temperature Range: 0?? to 45?? C (32?? to 113?? F)
• Max Charging Power: 10 W
• Operating Time: Approx. 110 mins

DJI Motion Controller

• Model: FC7BMC
• Weight: Approx. 167 g
• Communication Frequency: 2.400-2.4835 GHz 5.725-5.850 GHz [4]
• Transmission Power: (EIRP)
  • 2.4 GHz: ?? 28.5 dBm (FCC), ?? 20 dBm (CE/SRRC)
  • 5.8 GHz [4]: ?? 31.5 dBm (FCC), ?? 19 dBm (SRRC), ?? 14 dBm (CE)
• Operating Temperature Range: -10?? to 40?? C (14?? to 104?? F)
• Operating Time: Approx. 5 hours

DJI FPV Remote Controller 2

• Model: FC7BGC
• Weight: Approx. 346 g
• Communication Frequency: 2.400-2.4835 GHz 5.725-5.850 GHz [4]
• Transmission Power (EIRP):
  • 2.4 GHz: ?? 28.5 dBm (FCC), ?? 20 dBm (CE/SRRC)
  • 5.8 GHz [4]: ?? 31.5 dBm (FCC), ?? 19 dBm (SRRC), ?? 14 dBm (CE)
• Dimensions: (L??W??H) 190??140??51 mm
• Operating Time: Approx. 9 hours
• Operating Temperature Range: -10?? to 40?? C (14?? to 104?? F)
• Charging Time: 2.5 hours

Footnotes:

• * Please check and strictly abide by local laws and regulations before flying.
• ** When flying indoors, some features may be limited due to insufficient lighting, no GPS signal, or lack of space.
• *** Tested with a production model DJI Avata in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
• **** All videos and photos on this page were taken in strict compliance with local laws and regulations.
• 1. DJI Avata is compatible with DJI Goggles 2, DJI FPV Remote Controller 2, and DJI FPV Goggles V2.
• 2. The wearing and viewing experience may vary from person to person.
• 3. The screen refresh rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.
• 4. DJI Goggles 2 does not support astigmatism correction. If you have specific vision requirements, please consult your doctor before use.
• 5. The viewing experience may vary.
• 6. 4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.
• 7. The 155?? FOV is only available when the aspect ratio is 4:3, and the video recording specification is 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
• 8. HorizonSteady is only available in Normal mode FOV with an aspect ratio of 16:9 and the video recording specification of 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps. RockSteady is unavailable when the video recording specification is 2.7K@100/120fps or 1080p@100/120fps.
• 9. Tested when hovering in an environment without wind or interference.
• 10. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode or S Mode.
• 11. The aircraft must maintain a distance of at least 0.25 meters from the ground.
• 12. Tested in an outdoor open environment without interference. Video transmission latency varies with different goggles. DJI FPV Goggles V2 can reach a video transmission of up to 810p. When using DJI FPV Goggles V2 with the 810p/120fps video transmission, the lowest video transmission latency is less than 28 ms.
• 13. FCC compliant and tested in an outdoor open environment without interference.
• 14. Tested in an outdoor open environment without interference. Video transmission bitrate varies with operating environments.
• 15. Compatible with DJI FPV Remote Controller 2 and DJI Motion Controller, which are sold separately.
• 16. The PC client supports the Windows operating systems. The mobile client supports iOS 12.0 and later and Android v9.0 and later.
