Description

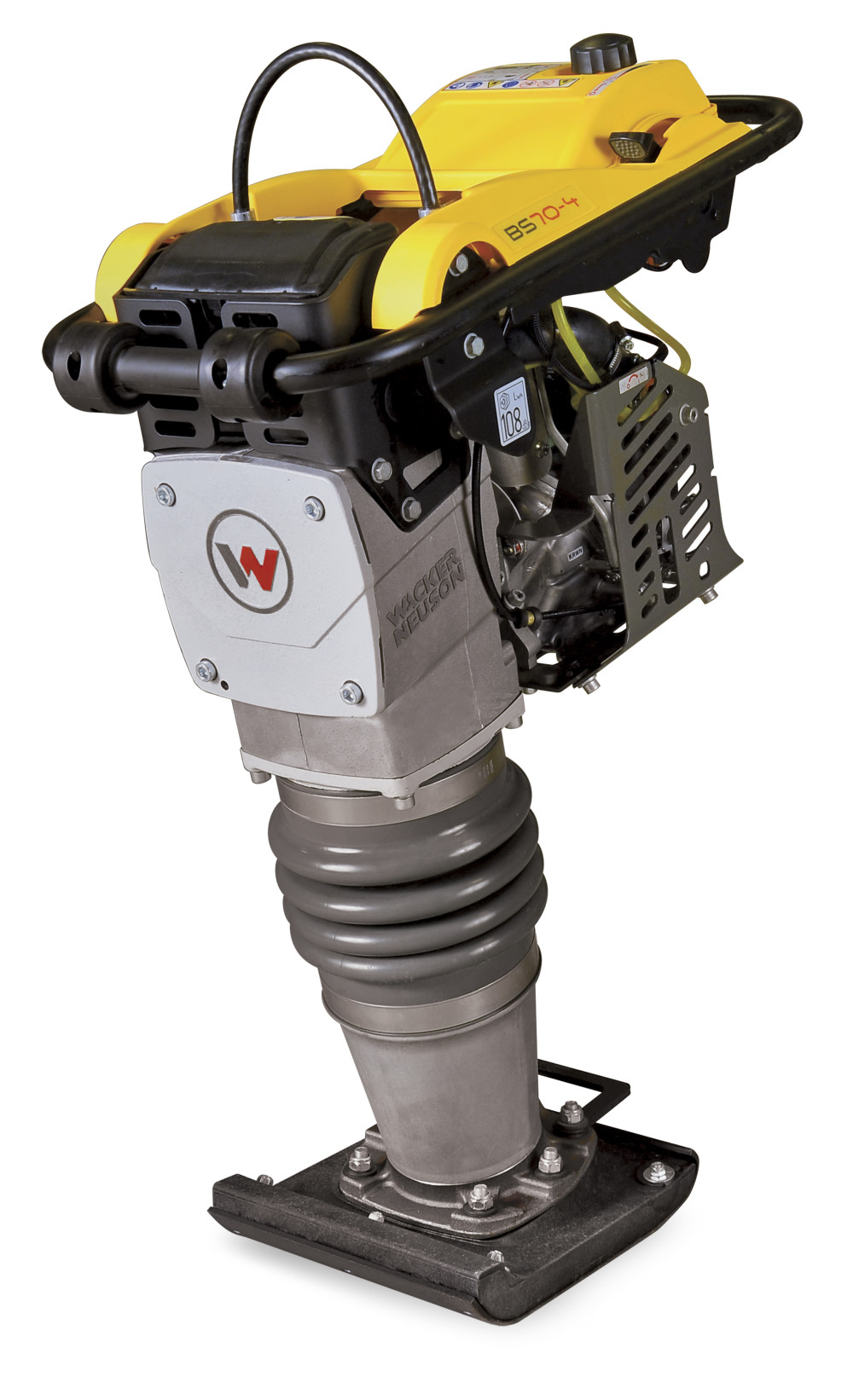

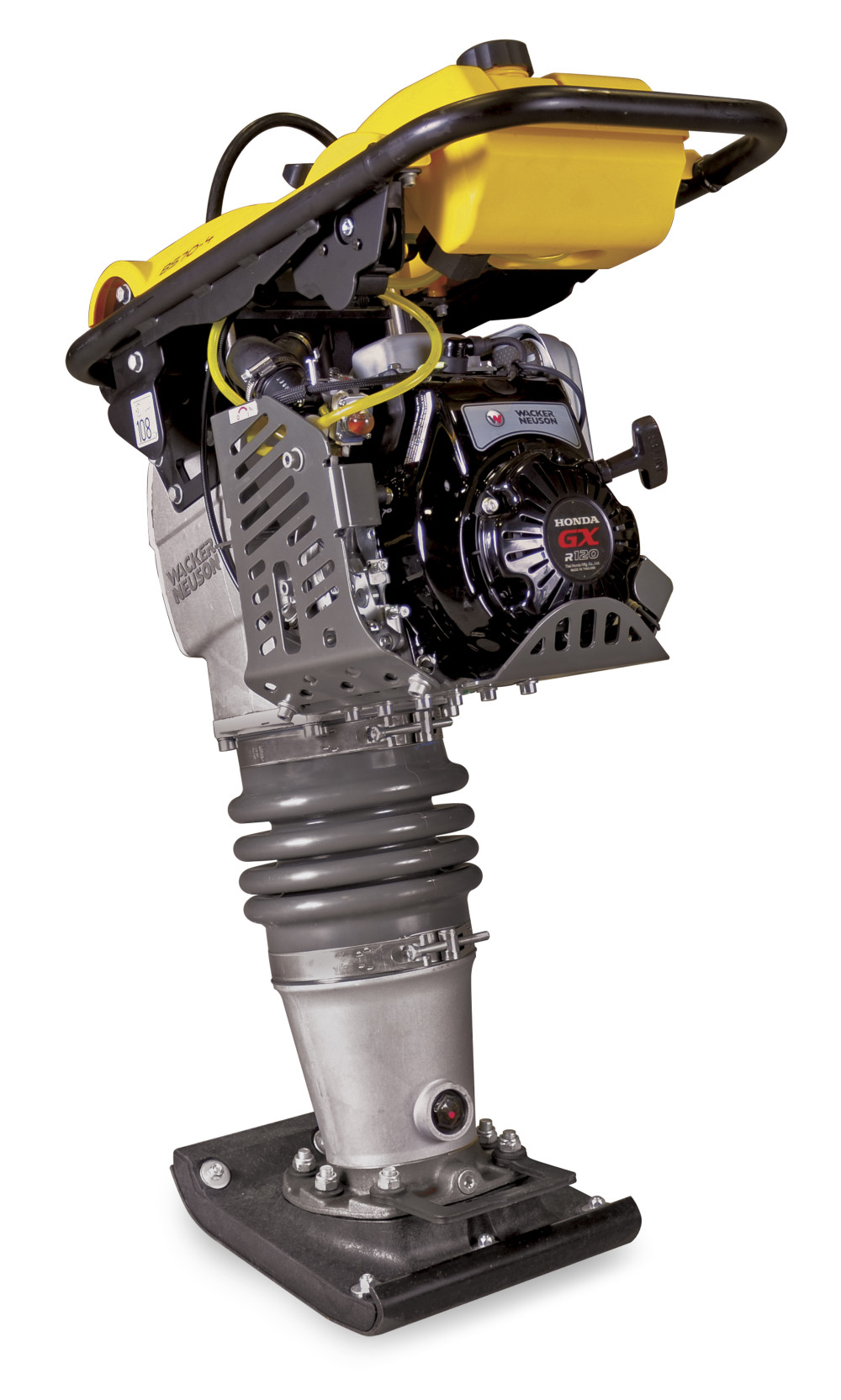

BS70-4As Rammer, 11″
Four-cycle rammers deliver outstanding performance Add Honda’s GX120 4-cycle engine to the preferred vibratory rammer design in the industry and you have a winning combination. The Honda GX120 engine is specifically designed for rugged rammer applications. These 4-cycle vibratory rammers are designed for the compaction of cohesive, mixed and granular soils in confined areas.
Features
4 stroke rammer with Honda GXR120 engine
Convenient operation with only one single lever for start, stop and idling
Large stroke, high percussion rate and high impact force with quick travel speed for a high level of performance
Specially designed and developed 4-stage air filter system provides for longer operating time and greater durability
With operating hours counter
Protection against low oil level: Unit does not start if the sensor detects a low oil level.
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100030610
Adjustable Handle Height
No
Anti-Vibration Handle
Yes
Application
Crushed aggregate, mix soils, sands, asphalt, clay
Assembled Depth (in)
26.5
Assembled Height (in)
37
Assembled Weight (lbs)
176
Assembled Width (in)
13.5
Battery Included
No
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color/Finish
Yellow
Compacting Plate Length (in)
13
Compacting Plate Material
Steel, Plastic
Compacting Plate Width (in)
11
Compaction Equipment Type
Rammer
Country of Origin
Germany
Engine
Honda
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Extension Plates Included
No
Fuel Consumption (gph)
0.3
Height (in)
37
Lifting Bail Included
Yes
Material
Crushed aggregate, mix soils, sands, asphalt, clay
Maximum Engine Output (hp)
4
Maximum Travel Speed (ft/min)
29
Package Contents
Unit and Operation Manual
Package Depth
27
Package Height
39
Package Weight
177
Package Weight (lbs)
177
Protective Cover
Yes
Surface Capability
Crushed aggregate, mix soils, sands, asphalt, clay
Vibration Frequency (Hz)
11.6
Water Spray System Included
No
