Description

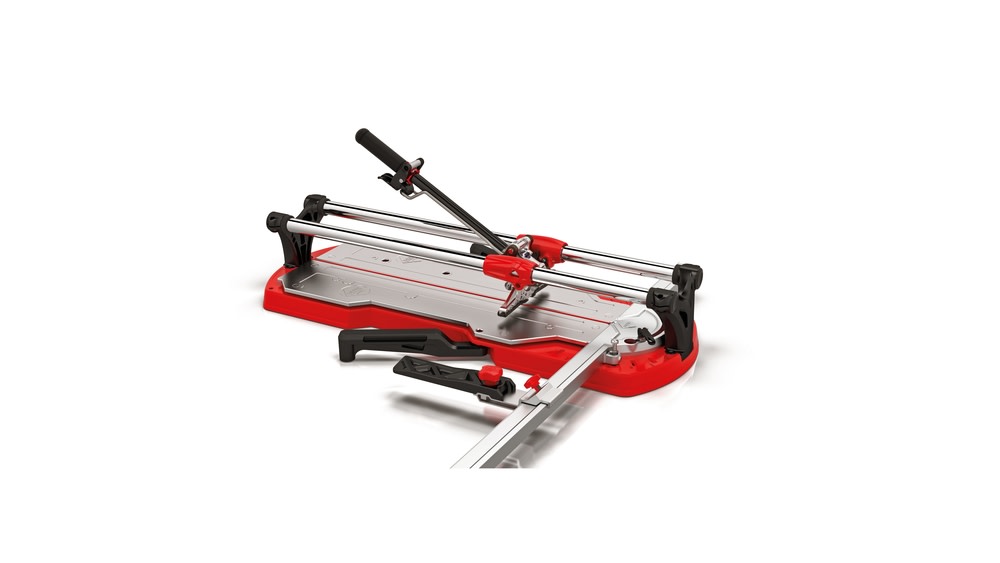

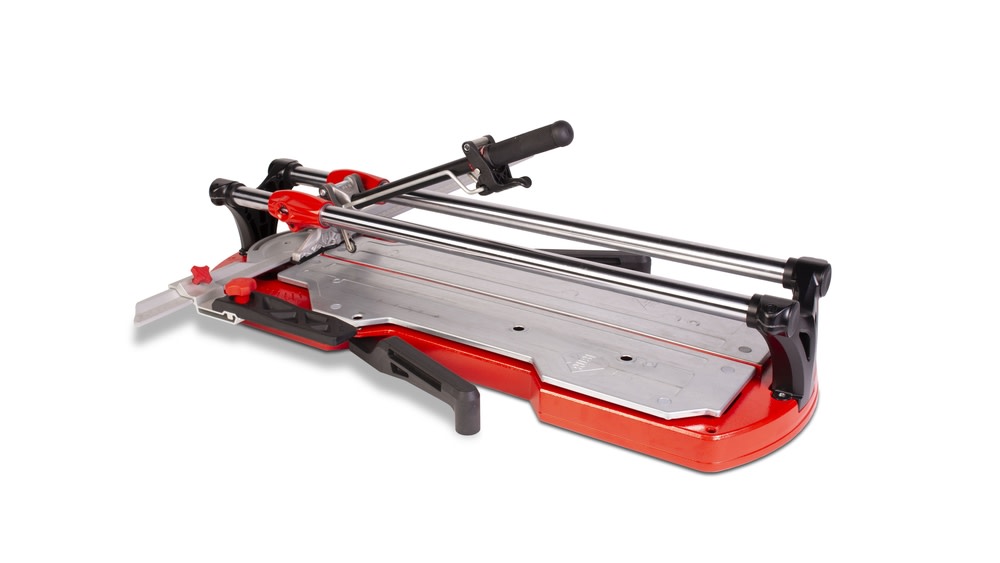

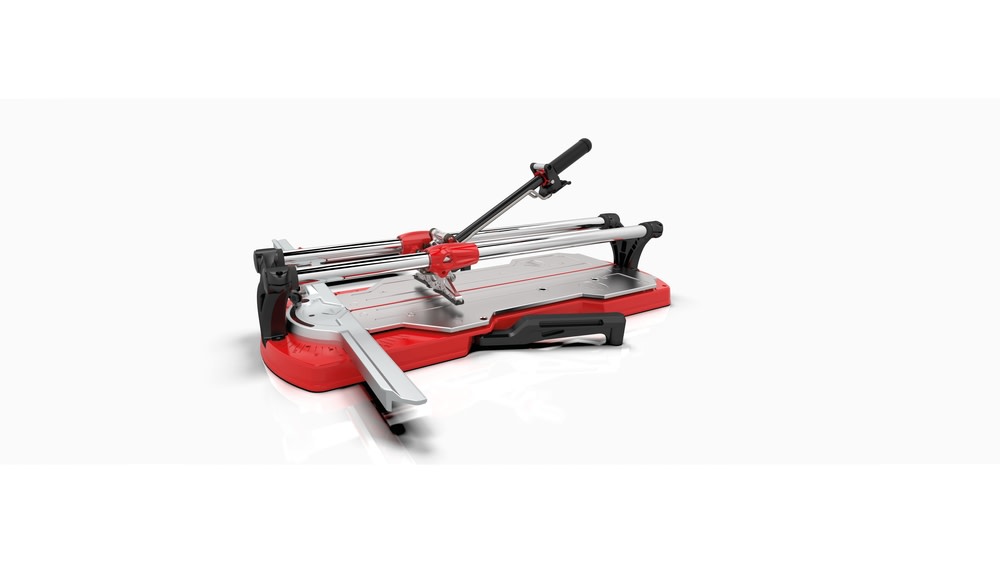

28 in. TX MAX Tile Cutter
Professional manual cutter with high-performance multi point breaker. For professional cutting of all types of ceramic tile, ideal for porcelain stoneware and extruded stoneware.
Features
Highly precise scoring.
Entire system highly efficient.
Reinforced components; heavy duty.
High breaking power (2646 lbs) – master power. One-handed operation.
Head with extra-long aluminum sliders with self-lubricating friction bushings.
Portable breaker with aluminum pressure pad, equipped with plastic protector to avoid marking delicate surfaces. Better visibility of the scoring and cutting zone.
The pressure pad is locked by a ratchet mechanism and is unlocked by the trigger, allowing one-handed scoring and breaking. Faster use. Increases performance with both thin and thick materials.
Injected-aluminum base, reinforced with a central rib, for increased strength.
Floating tables and supplementary arms for large-size ceramic tile, increases cutting stability.
Handle with soft grip for better ergonomics and comfort.
Equipped with 8 mm and 22 mm extreme scoring wheels. Compatible with the entire plus line of scoring wheels.
Includes a carrying case.
Specifications
Acme Tools Brand Name
RUBI TOOLS
Acme Tools Part Number
17910
Assembled Weight (lbs)
41.88
Blade Diameter (in)
0.31
Blade Material
Carbide
Blade Thickness (in)
0.02
California Proposition 65 Warning Required
Yes
Commercial / Residential
Commercial
Country of Origin
Spain
Cuts Ceramic
Yes
Cuts Natural Stone
No
Cuts Porcelain
Yes
DIY or Professional
Professional
Handle Length (in)
14
Height (in)
7.59
Horsepower (hp)
Universal Motor
Internal Supplier Part #
17910
Internet Product Code (IPC)
FAE53ED0739
Length (in)
41.41
Manufacturer Warranty
5 years warranty
Maximum Tile Cut Size Diagonal
20
Maximum Tile Cut Size Rip
28
Package Depth
7.598
Package Height
7.598
Package Weight
44.551
Package Weight (lbs)
44.55
Replaceable Blades
Yes
Tile Accessory Category
Manual Tile Cutter
Weight (lbs)
41.88
Width (in)
18.03
